Description

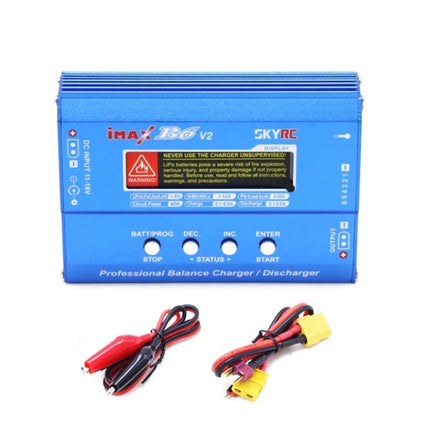

SKYRC iMax B6 V2 Lipo Battery Balance Charger Discharger NiMH NiCD LiHV NiCd PB Li-ion 6A 60W RC Batteries (without Mains Power Supply).
SKYRC B6 is a DC input high-performance, micro-processor controlled charge discharge DC-DC converter with battery management suitable for all mainstream battery types (LiPo LiFe Li-Ion LiHV NiMH NiCd Pb).
The charger delivers dedicated 60W integrated power and charge current can up to 6A. Additionally, it supports DJI Mavic/Inspire Battery with maximum 4A charge power.
It's more intuitive to indicate the current real-time battery power with the battery icon and percentage of charge & discharge.
ARM® Cortex®-M3 32 bits high speed processor, data process capability improves 20 times. Using industry leading 2.5V-5.5V wide range input voltage, has strong anti-interference ability.

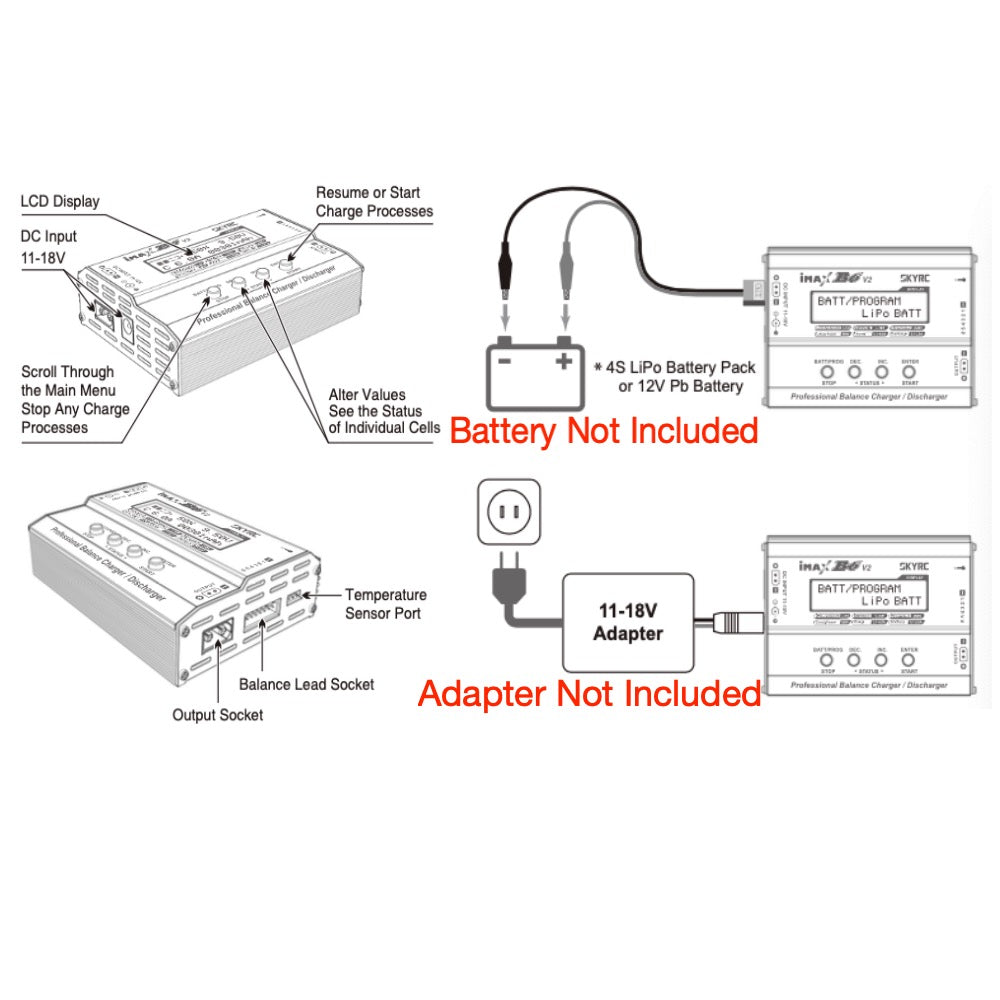

B6 V2 charger is integrated with DC power input, pumping max power of 60W with the voltage ranging of 5-26V and 1-6A current. With this charger, RC drivers have a convenient gadget to power their DC devices in the field, such as tire warmer, PIT light, etc.
Specifications
Display Type: LCD
Display backlight: Blue
Power:

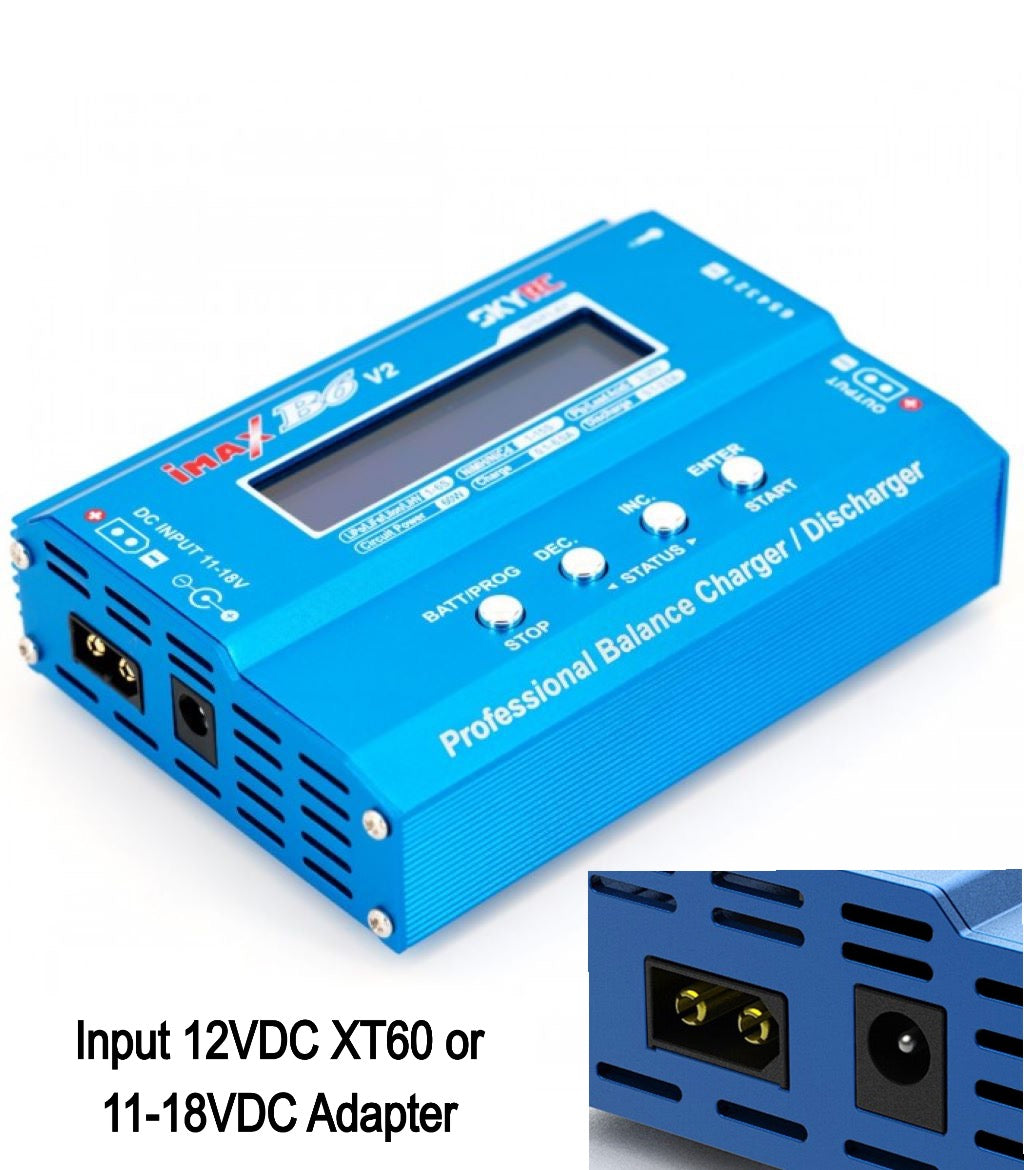

DC Input:11-18V
Charge Wattage: 60W
Discharge Wattage: 5W
DC Output Wattage: 60W
Battery Types Cells:
LiPo LiHV LiFe Li-Ion: 1-6 cells
NiMH/NiCd: 1-15 cells
Pb: 2-20V
DJI Mavic: 3 cells (LiHV)
DJI Inspire: 4 cells (LiHV)
Safety Timer: 1-120minutes off
Memory: 10 different charge discharge profiles

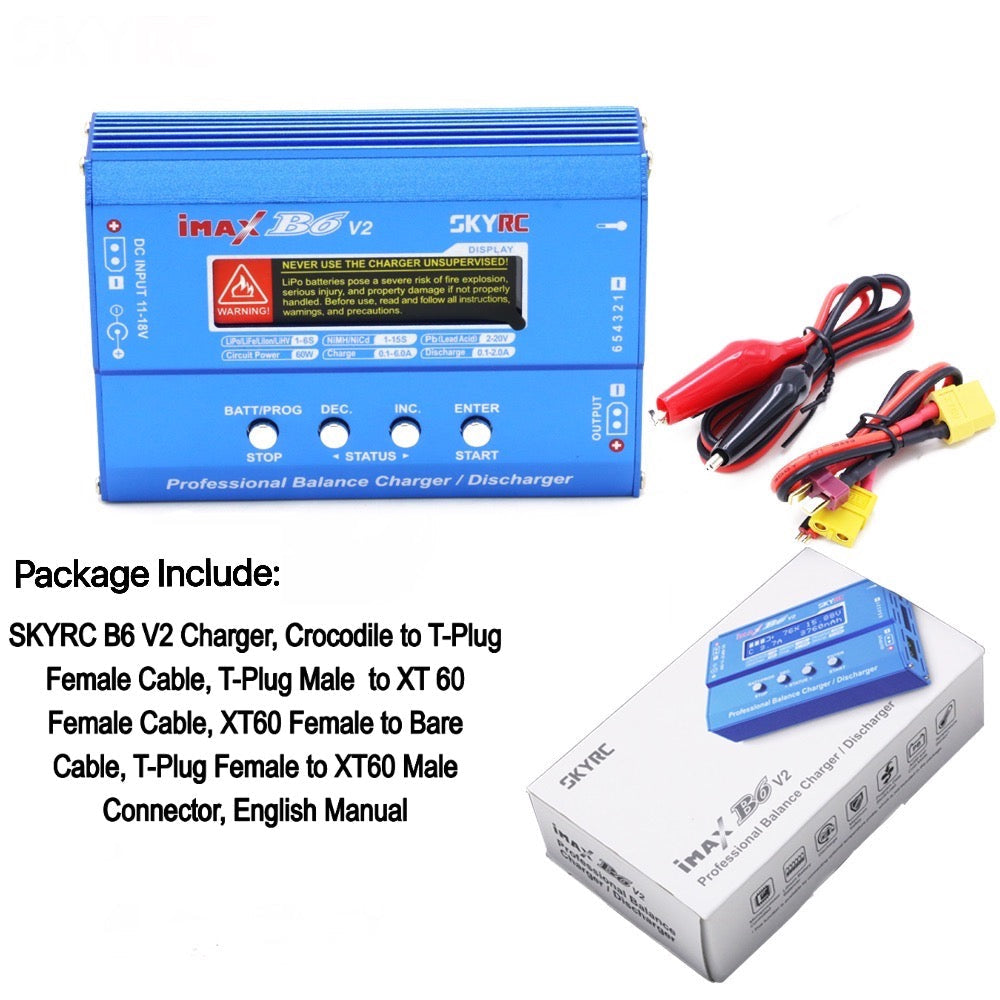

Package Include:
SKYRC B6 V2 Charge
DC Input Cable
Dean Charging Cable
Bare Charging Cable

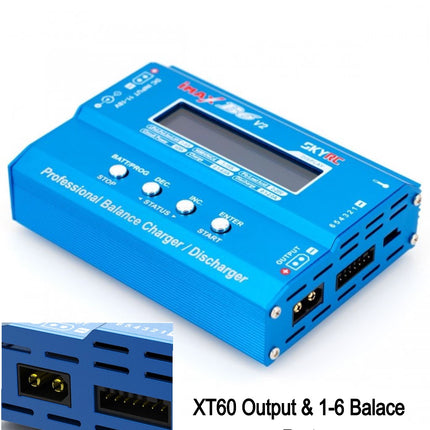

T-Plug to XT60 Connector
Instruction Manual
