Description:

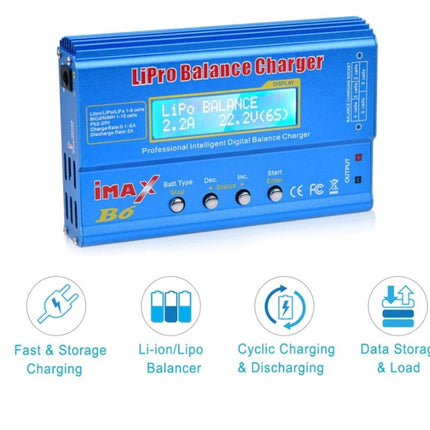

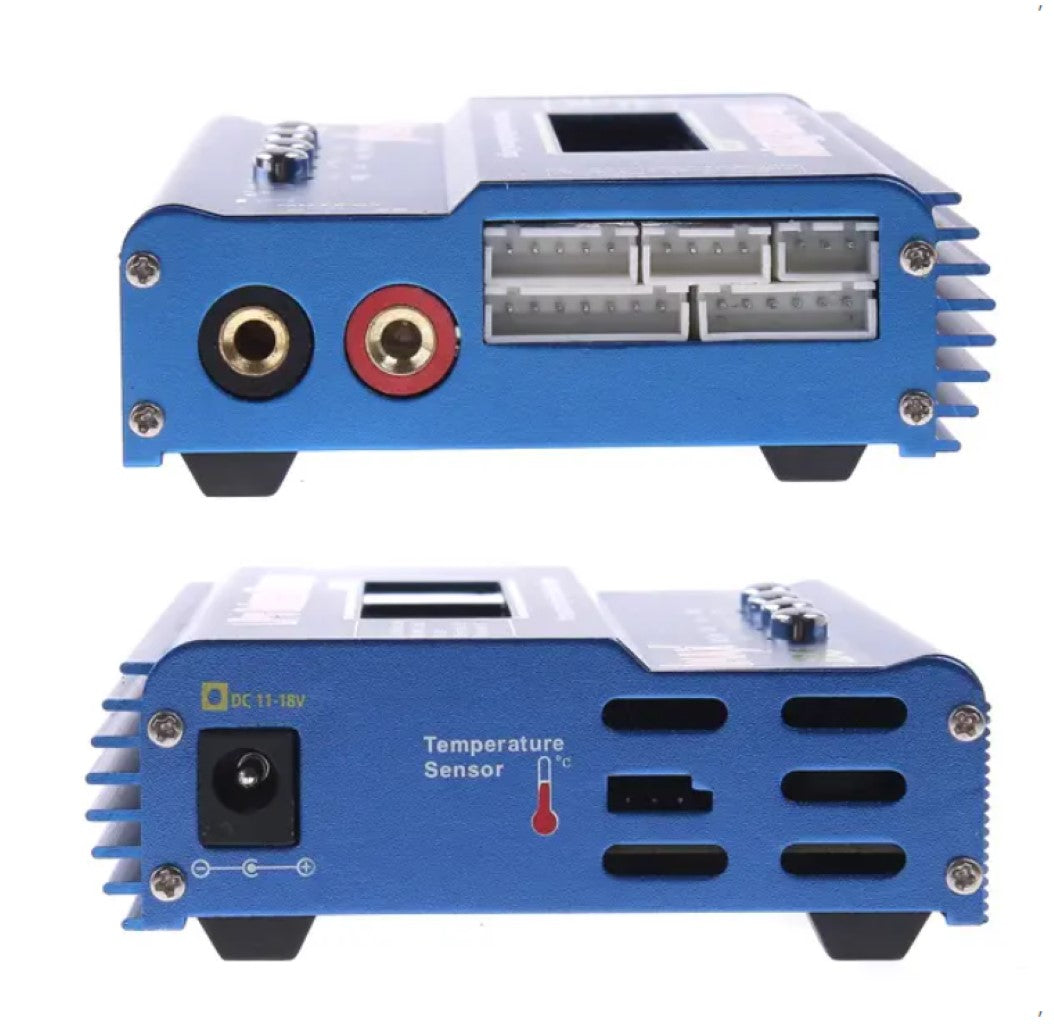

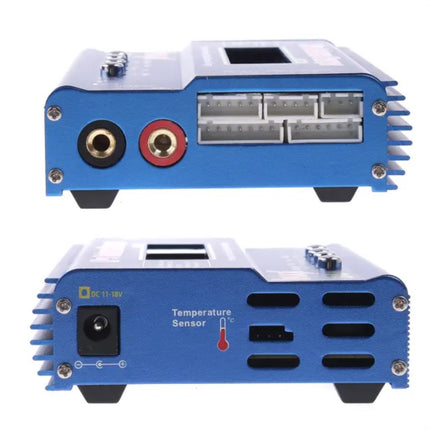

IMAX B6 RC Lipo NiMH NiCd LiFe Pb Battery Balance Charger Discharger with LCD Screen
IMAX B6 is the new intelligent multifunction charger which can charge and discharge
Lion, LiPo, LiFe , Pb, NiCd and NiMH batteries.
Feature:
Microprocessor controlled Delta-peak sensitivity.
Individual cell balancing Li-ion, LiPo and LiFe capable Ni-Cd and NiMH capable
Large range of charge currents Store function, allows safe storage current
Time limit function
Input voltage monitoring. (Protects car batteries at the field)
Data storage (Store up to 5 packs in memory)
Battery break in and cycling.
Support new generation system (LiFe) battery
Charger Specifications:
Operating voltage range: DC11.0-18.0 volts
Circuit power: maximum charging power 50W / 80W / Max.discharge power 5W
Charging current range: 50W 0.1-5.0A / 80W: 0.1-6.0A
Discharge current range: 50W 0.1-1.0A / 80W: 0.1-2.0A
Current consumption for balancing Lipo: 300mAH / cell
LiIon / LiPo / LiFe battery: 1-6 cell
NiCd / NiMH battery: 1-15series
Lead battery voltage: 2-20v

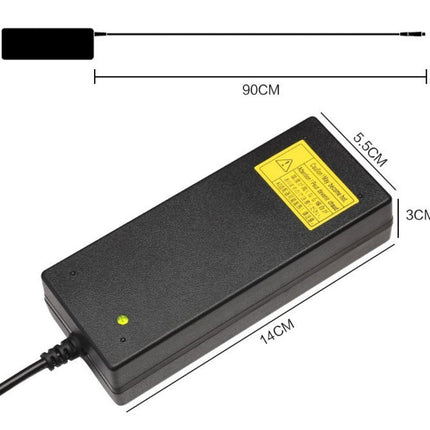

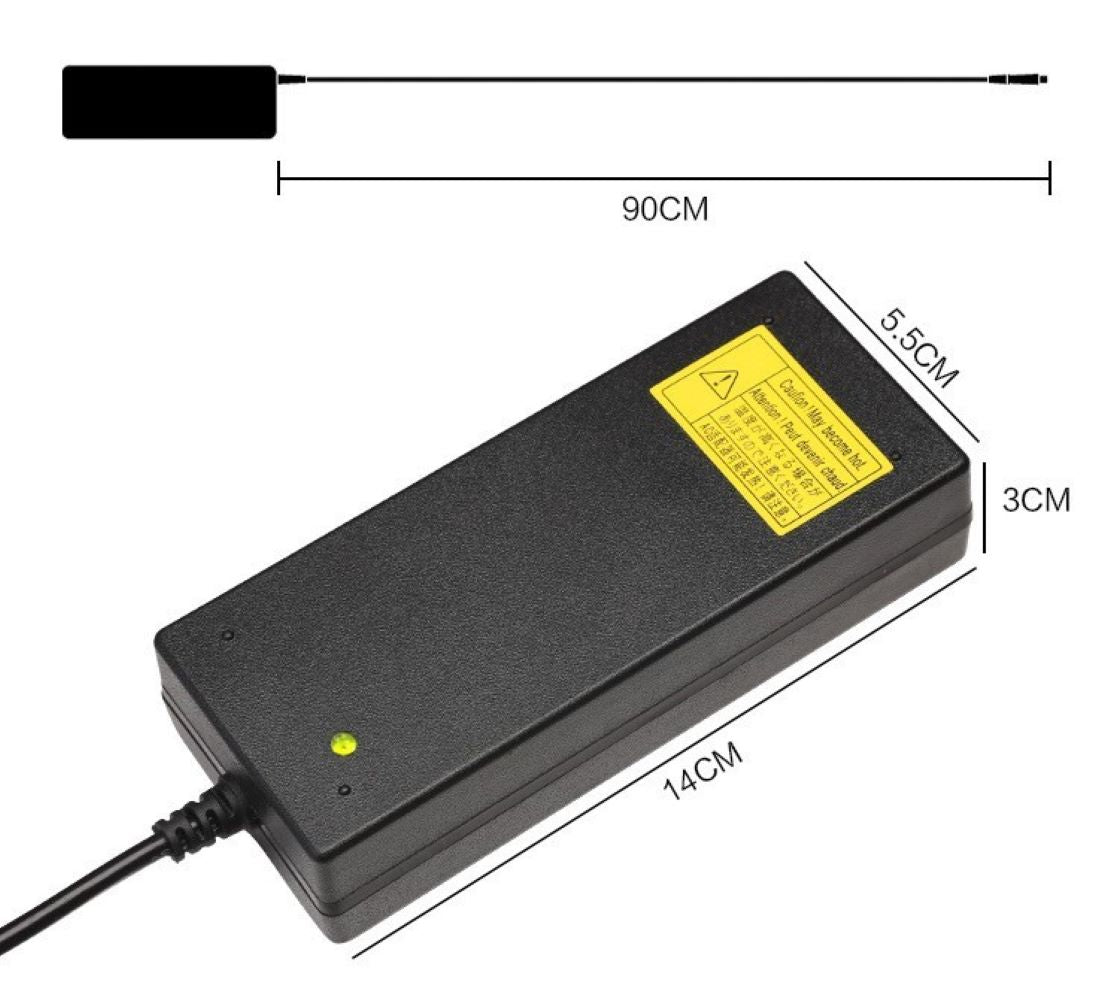

Power Adaptor Specifications:
Input Volts: 100-240VAC 50/60Hz 2A
Output Volts: 12VDC 5A
Power: 60Watts

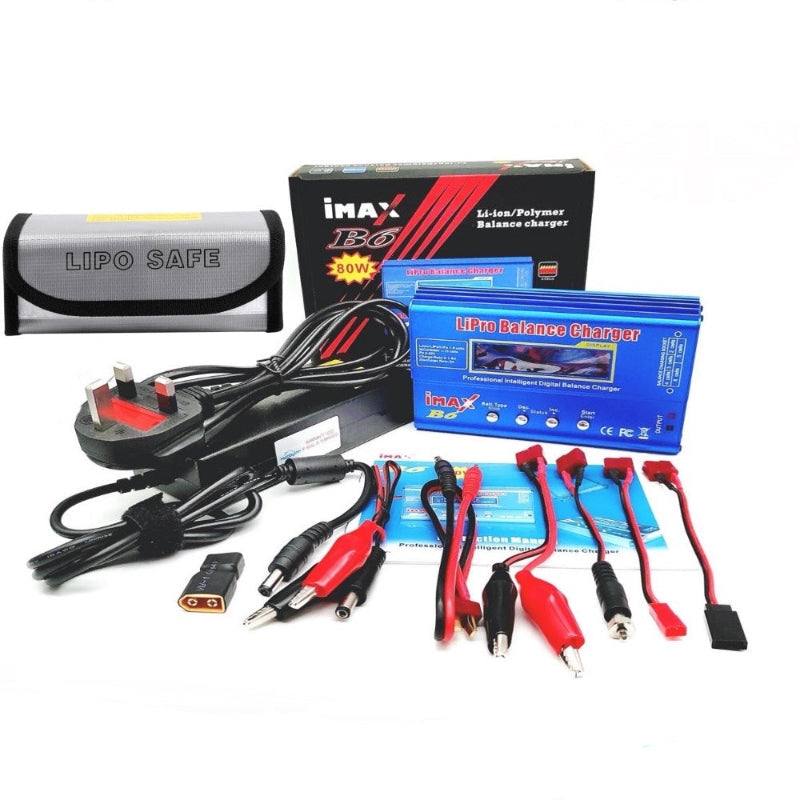

Package include:

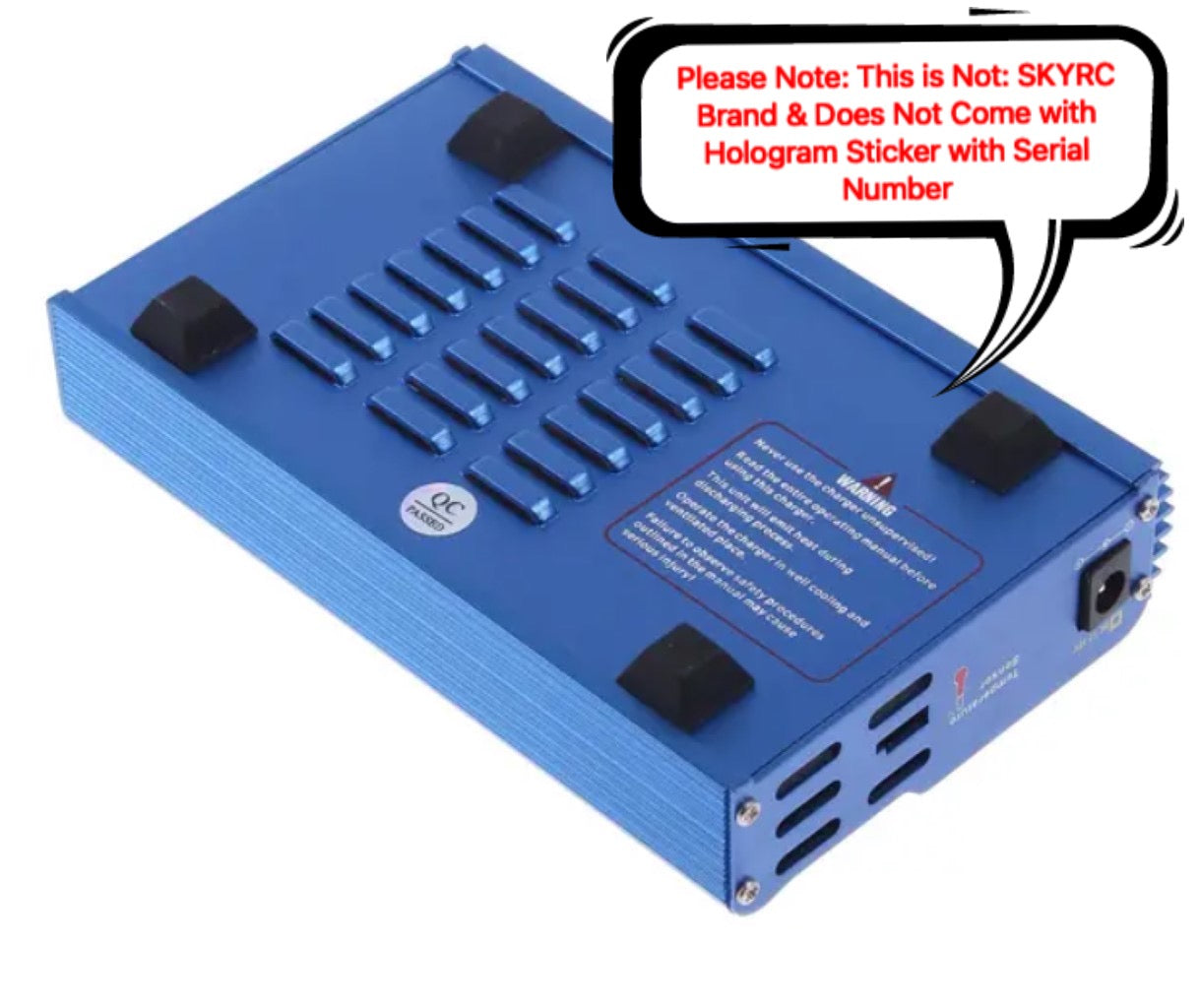

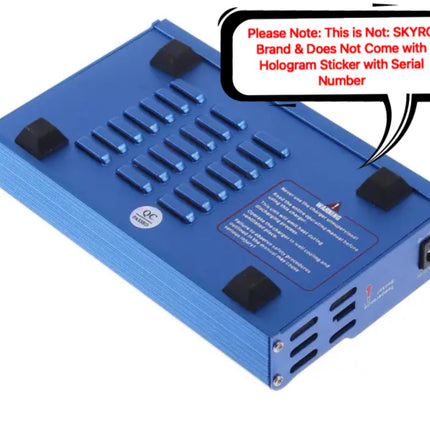

iMax B6 Charger ( Input Volts 11-18VDC )

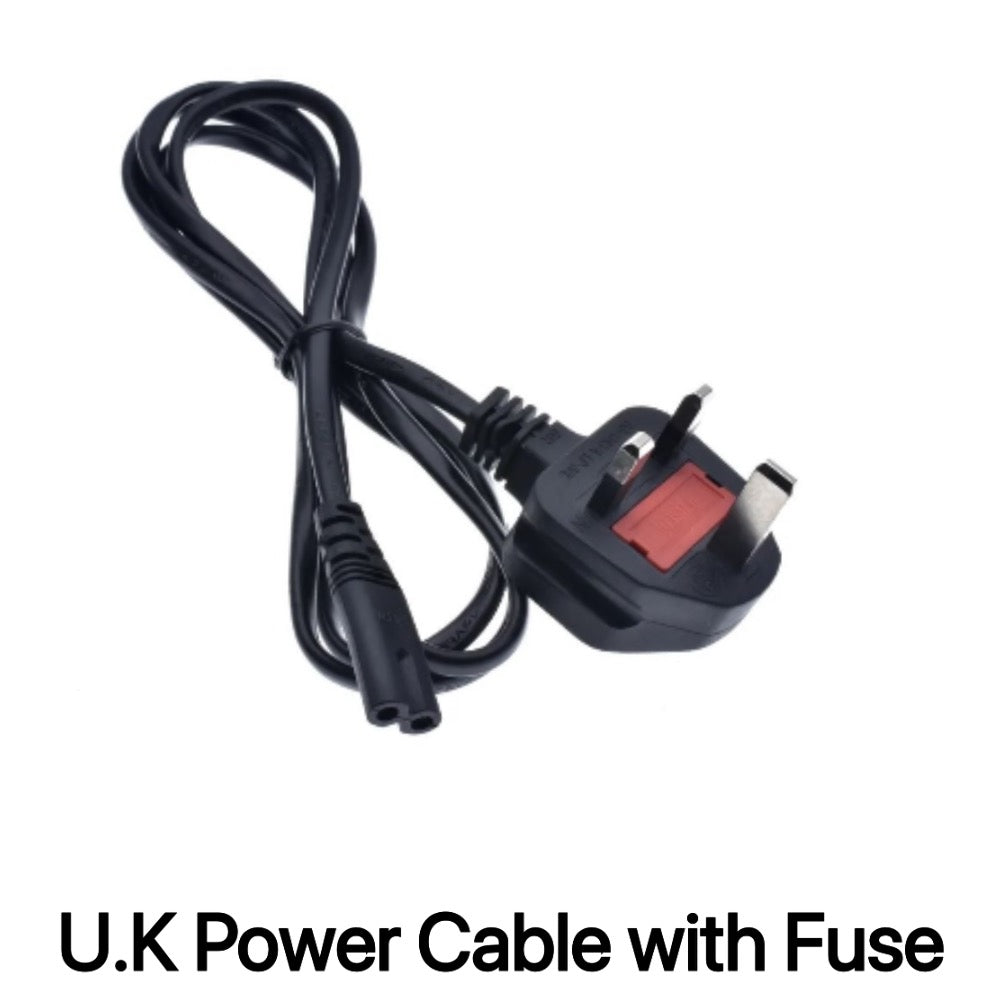

AC to DC Power Adaptor 12VDC-5A(60Watts) with U.K Power Cable

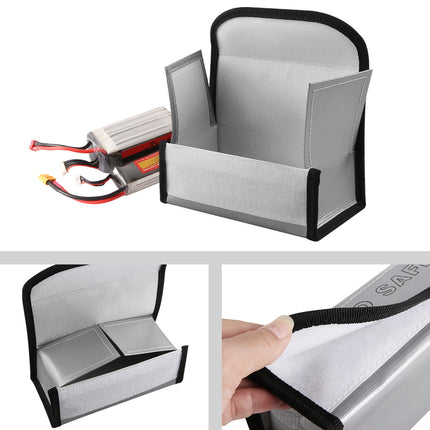

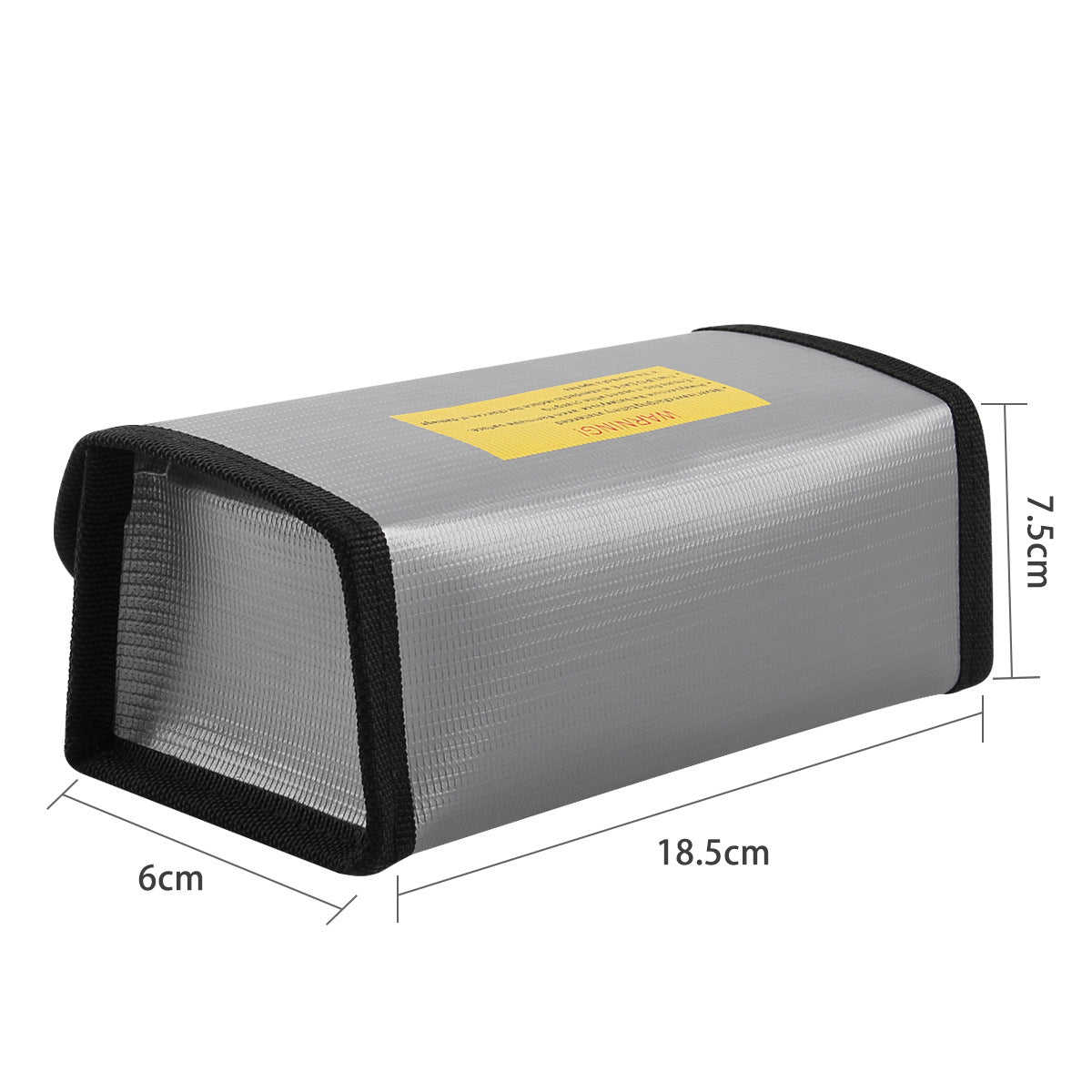

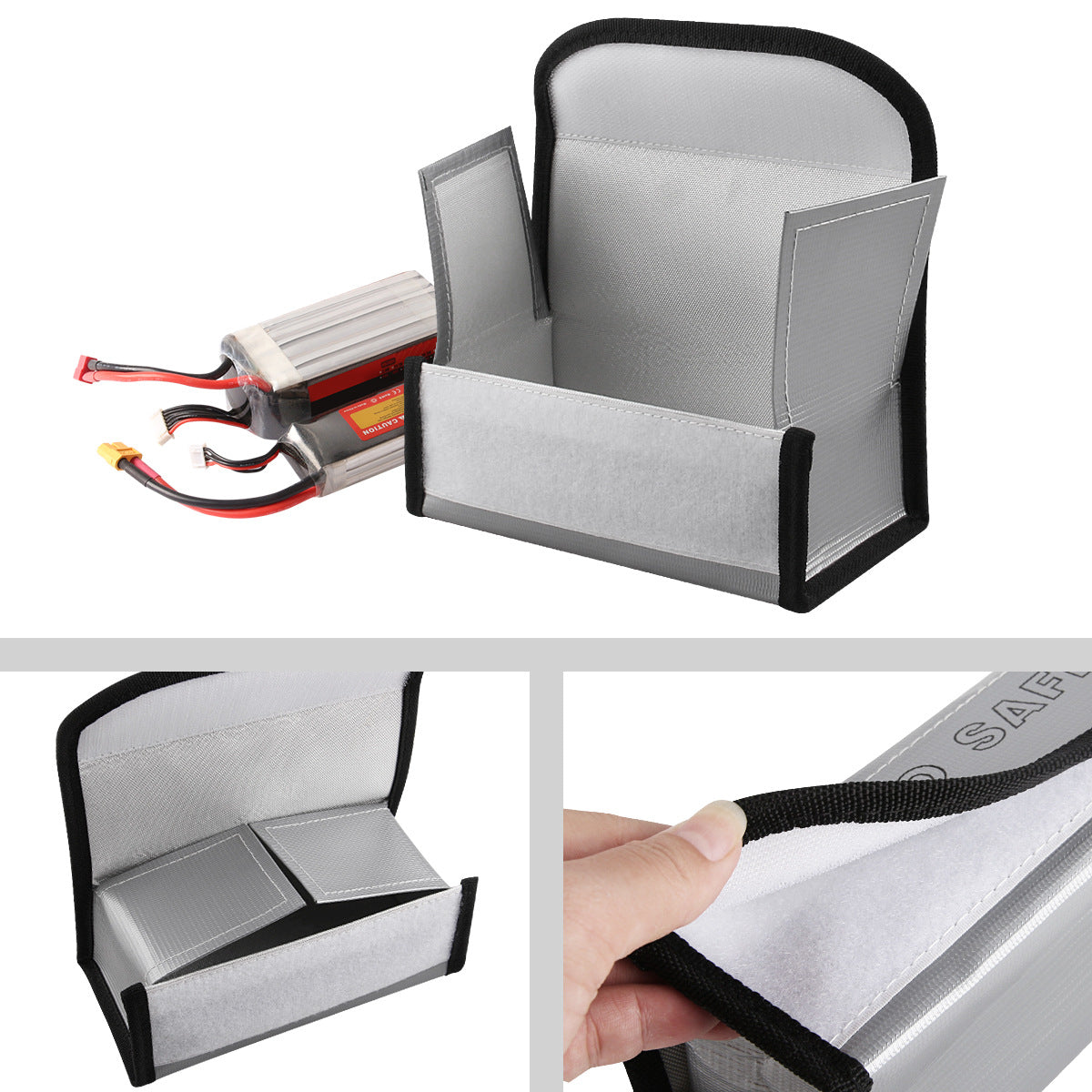

Lipo Safe Bag
XT60 Male to T-Plug Female
T-Plug Female to JST Male
T-Plug Female to Crocodile Clips
T-Plug Female to JR Plug
Banana Plug to T-Plug Male
Crocodile Clips to 5.5*2.1mm DC Male Connector
T-Plug Female to Glow ignitor Connector
English Manual
