Description

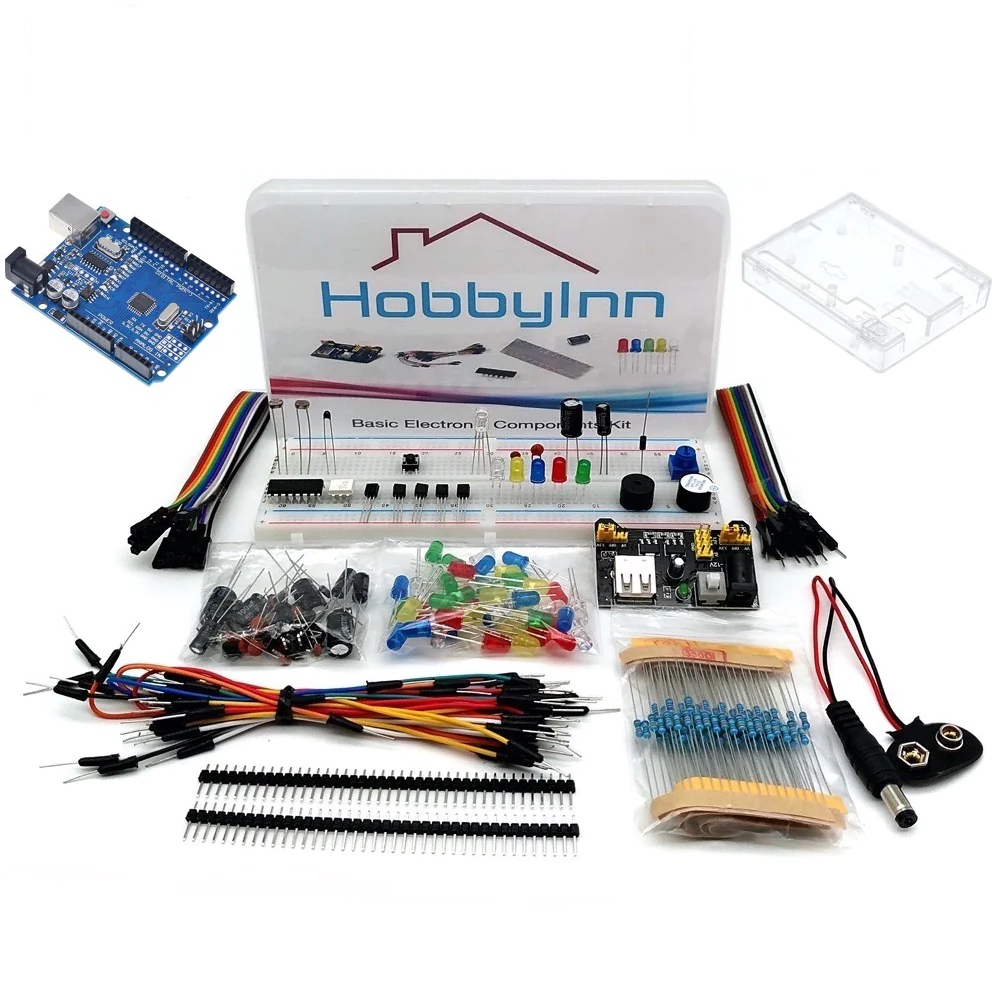

The most complete electronic component kit.
Compatible with Arduino IDE.

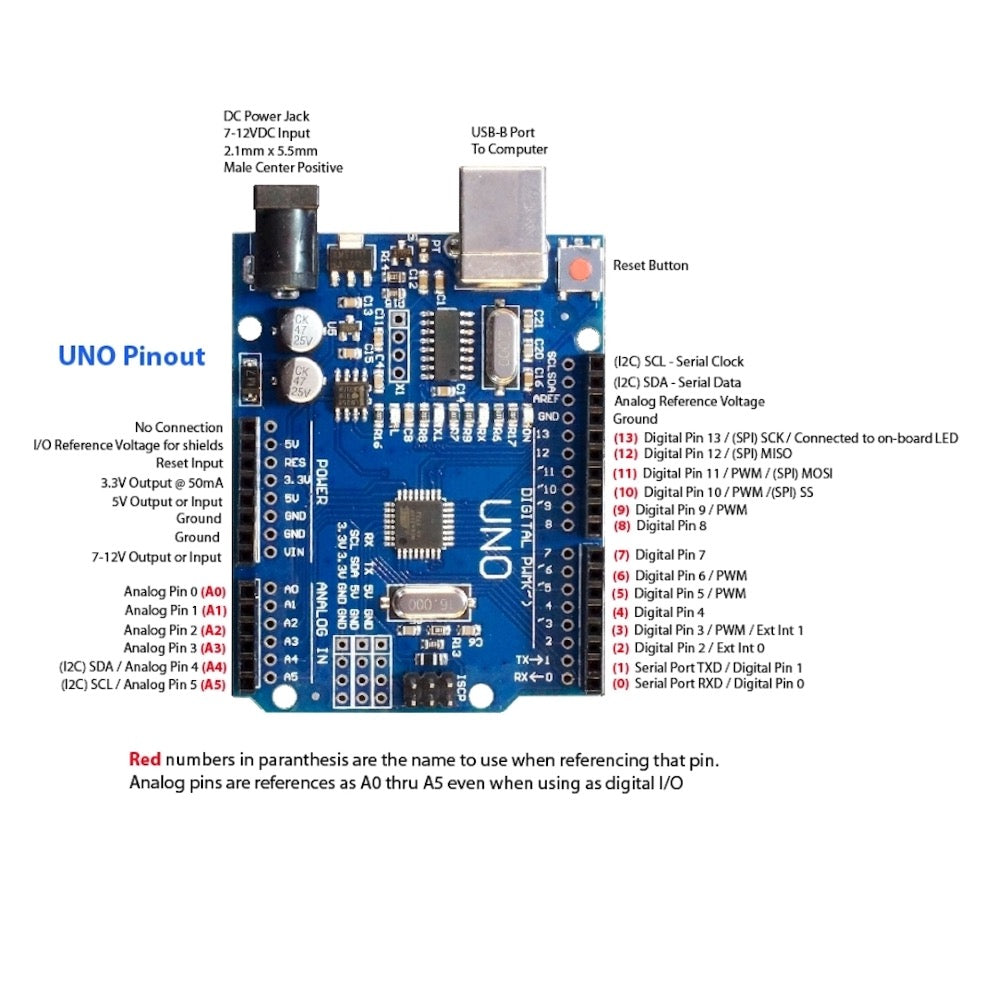

The UNO R3 is an easy-to-use open-source electronics prototyping platform.

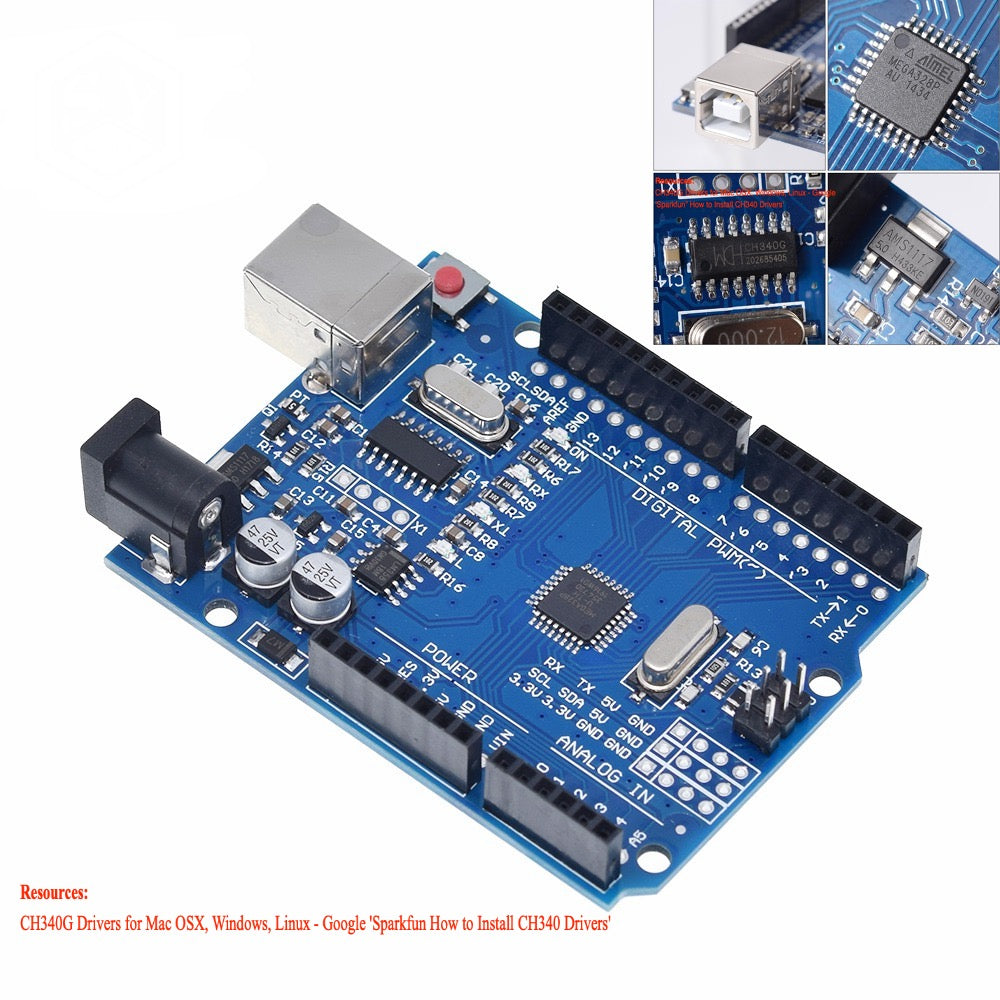

In both hardware and software, it doesn't differ too much compared with UNO R3, but uses CH340G Serial USB chip instead.
Resources:
CH340G Drivers for Mac OSX, Windows, Linux - Google 'Sparkfun How to Install CH340 Drivers'
Power Supply Module
Onboard two sets of 3.3V, 5V DC output pin with self-locking switch indicator
Voltage regulator chip AM1117-5.0 / AM1117-3.3V
Specifications:
Input voltage: 6.5-12V (DC) or USB power supply
Output voltage: 3.3V, 5V via jumper selection
Output current: <700ma

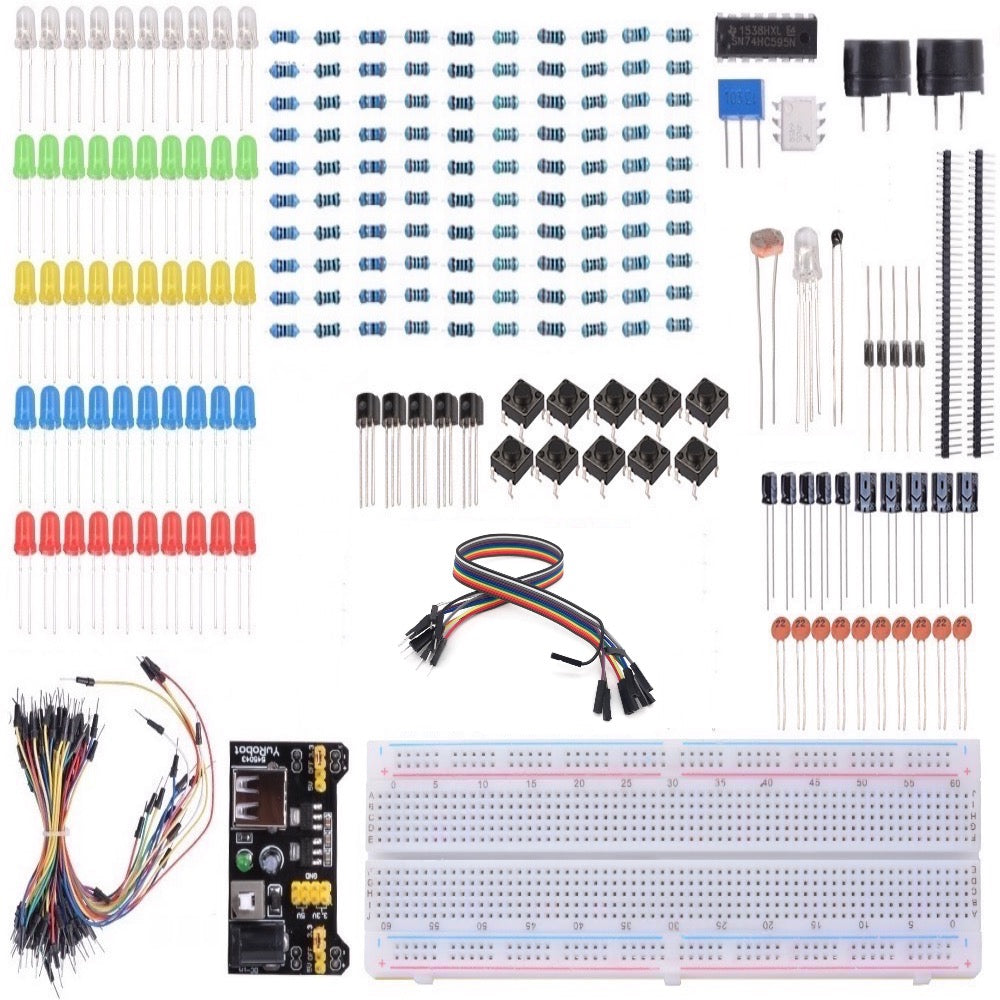

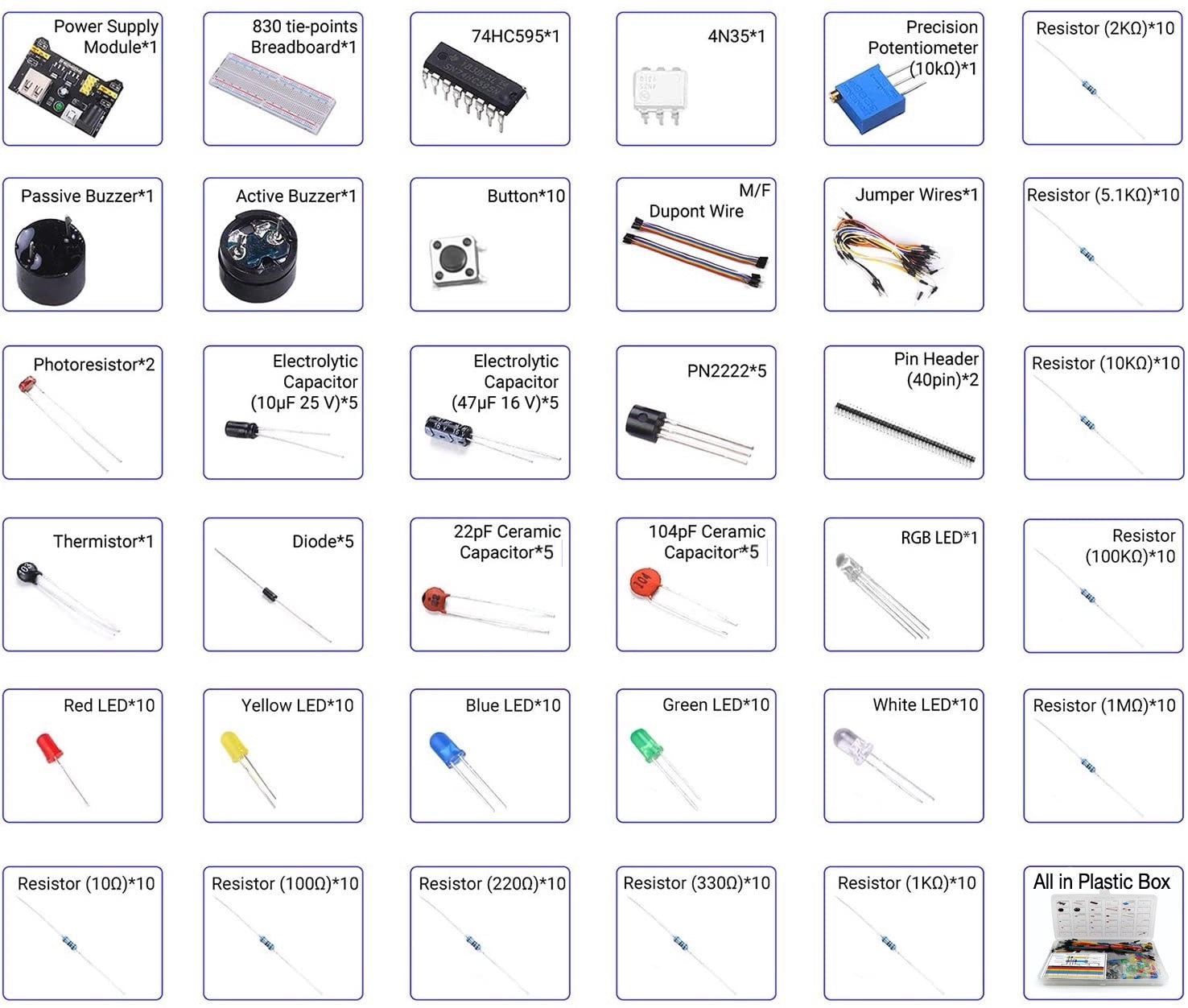

Package includes:

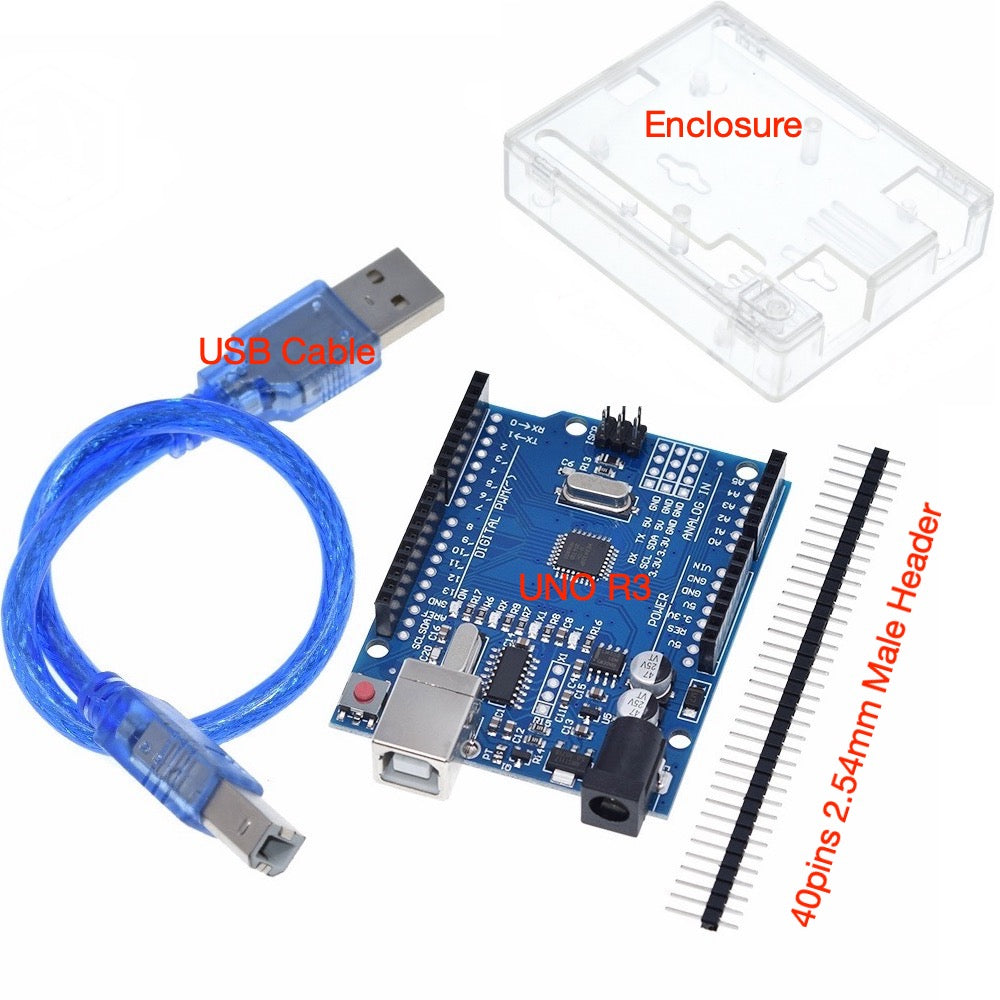

1* UNO R3(CH340 Chip)

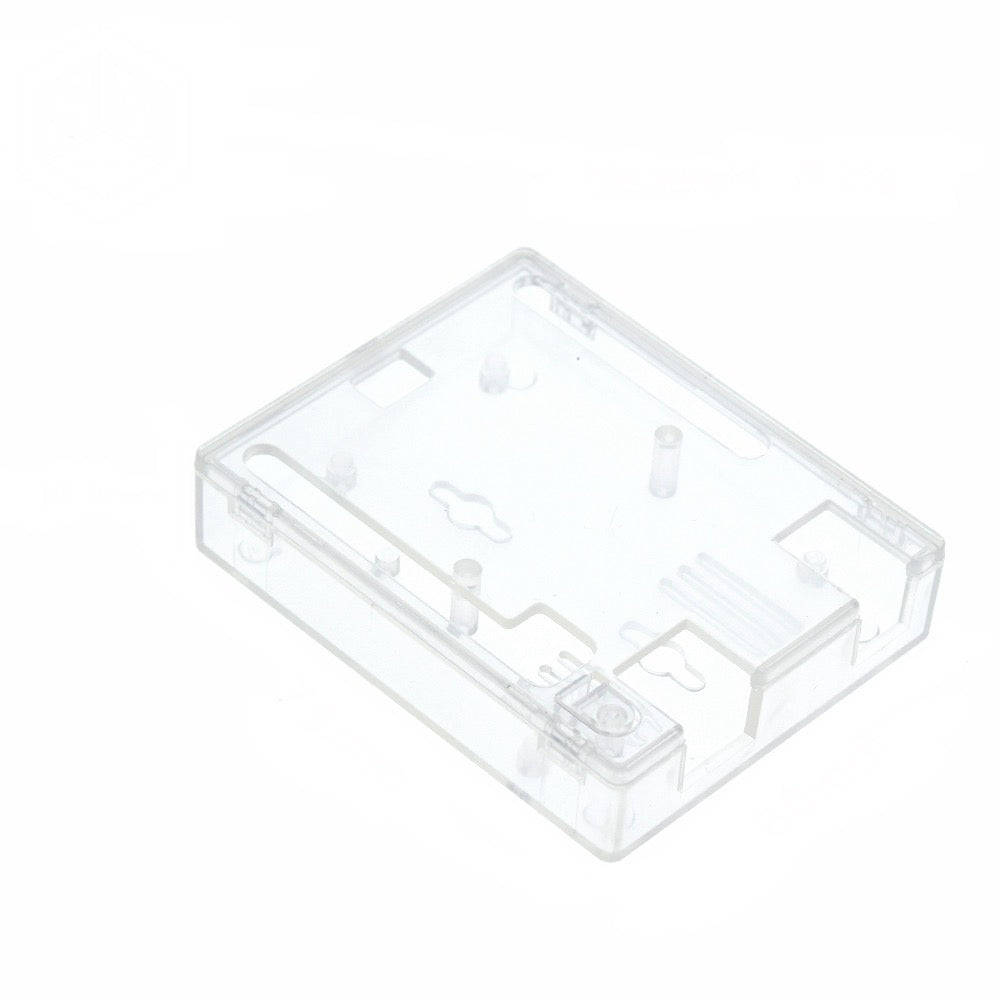

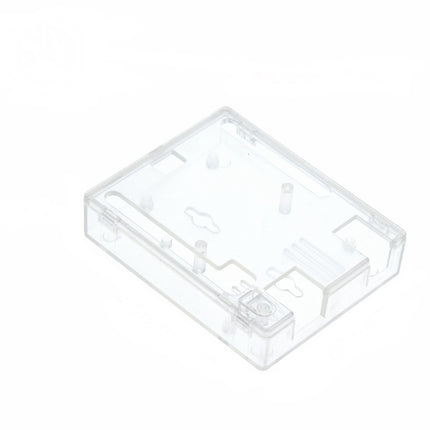

1* UNO R3 Plastic Enclosure
1 x Power Supply Module (Do NOT use the voltage higher than 9V)

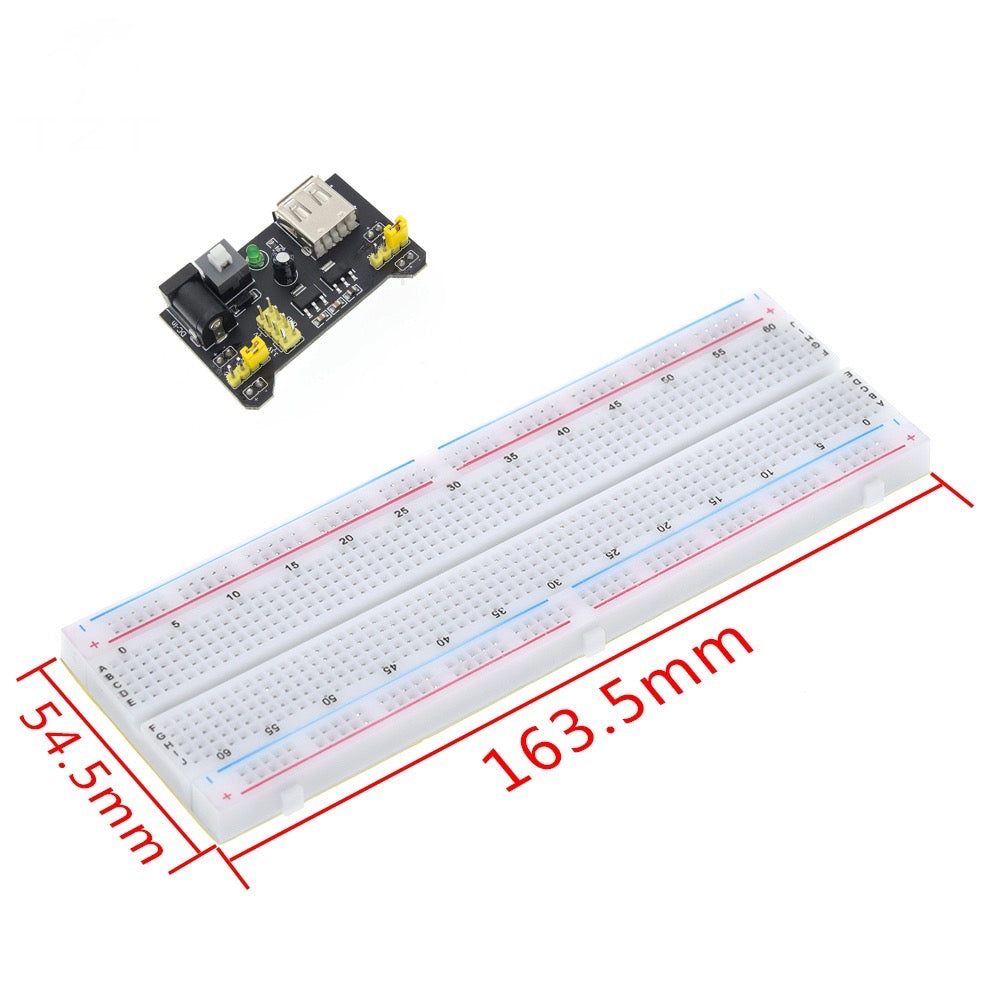

1 x 830 tie-points Breadboard

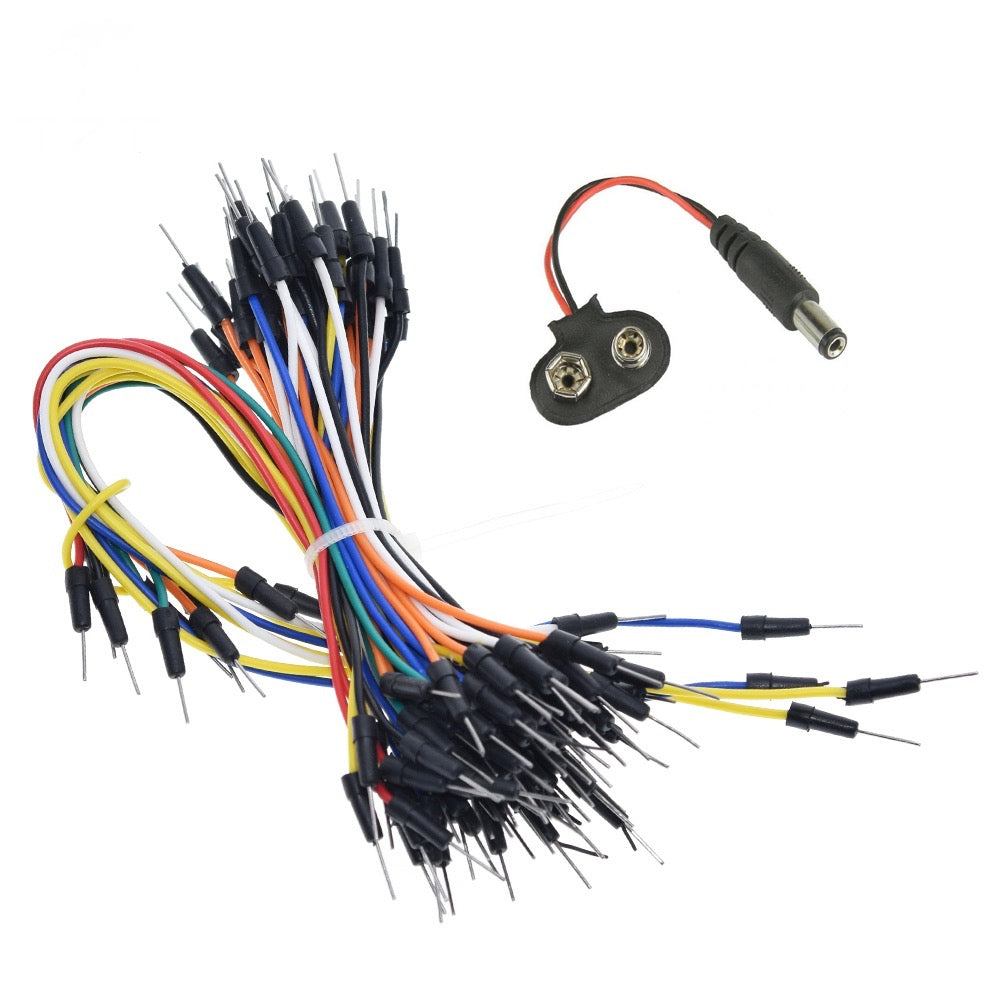

1 x Jumper Wire
10 x Female-to-Male Dupont Wire
10 x Female-to-Female Dupont Wire
2 x Pin header (40pin)
1 x Precision Potentiometer
2 x Photoresists
1 x Thermistor
5 x Diode Rectifier (1N4007)
5 x NPN Transistor (PN2222)
1 x IC 4N35
1 x IC 74HC595
1 x Active Buzzer
1 x Passive Buzzer
10 x Button (small)
5 x 22pf Ceramic Capacitor
5 x 104 Ceramic Capacitor
5 x Electrolytic Capacitor (10UF)
5 x Electrolytic Capacitor (47UF)
10 x White LED
10 x Yellow LED
10 x Blue LED
10 x Green LED
10 x Red LED
1 x RGB LED
10 x Resistor (10R)
10 x Resistor (100R)
10 x Resistor (220R)
10 x Resistor (330R)
10 x Resistor (1K)
10 x Resistor (2K)
10 x Resistor (5K)
10 x Resistor (10K)
10 x Resistor (100K)
10 x Resistor (1M)
