Description
Product name: 1/18 full-scale remote control four-wheel drive.

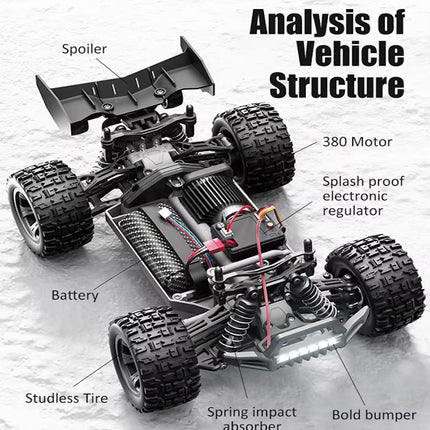

Motor: RC380 high-speed carbon brush(Magnetic Protection + Heatsink).
Speed per hour: 40 km/h.
Receiving: 25A 2S all-in-one control (splash-proof).
Battery: 7.4V 1500mAH lithium-ion battery (T-plug).
Remote control battery: 3 "AA" (included).
Charger: USB cable charger.
Frequency: 2.4GHz (support multi-car competition at the same time).
Remote control distance: ≥80 meters.
Remote control category: full-scale synchronous control system.
Control time: 30-35 minutes of endurance (continuous full-speed running).
Charging time: 3-3.5 hours (USB balanced charging).
Headlight configuration: LED front light white light.
Differential structure: Metal differential (planetary gear).

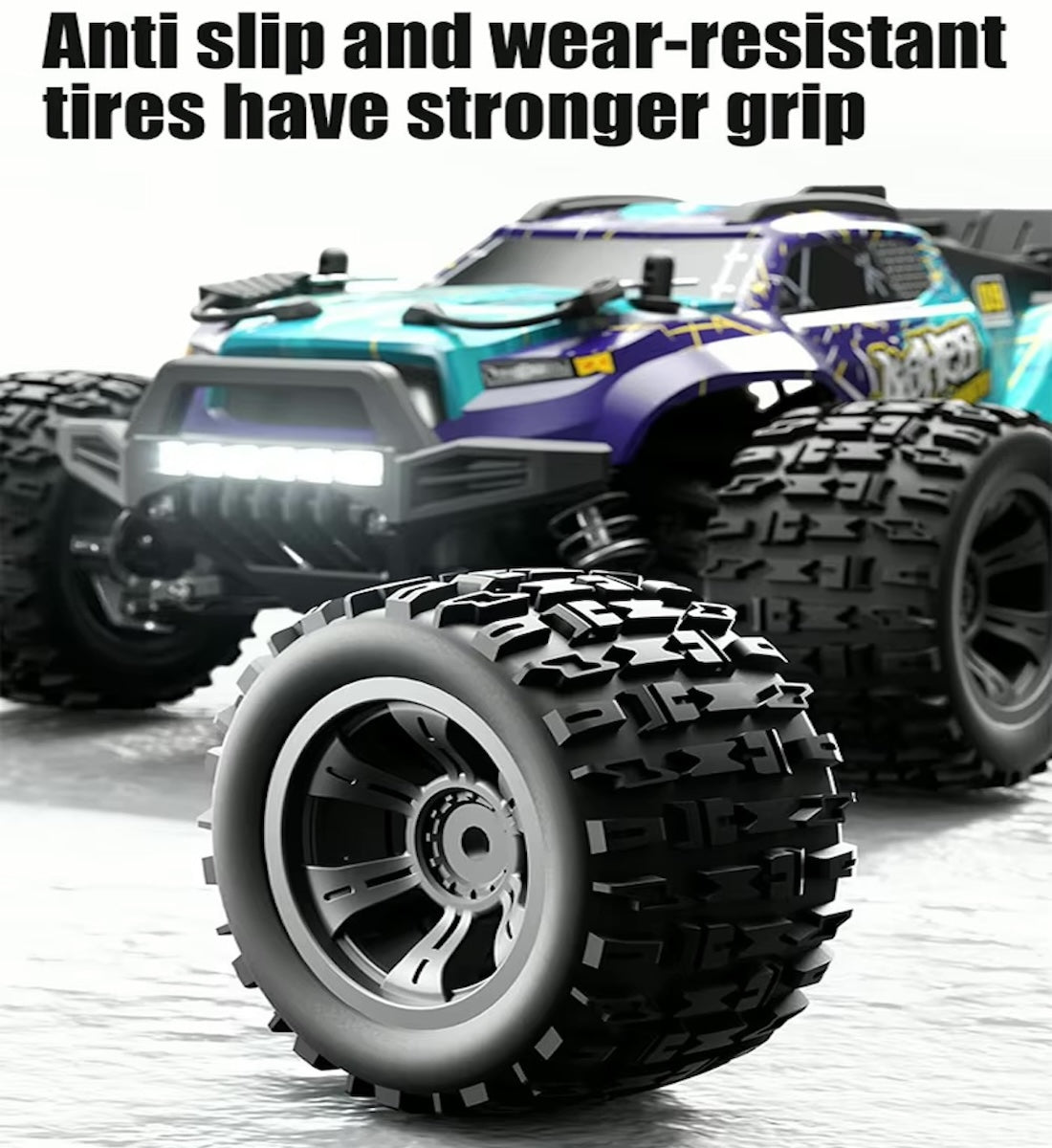

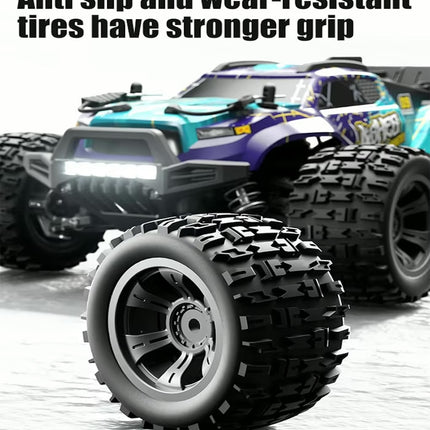

Wheel diameter: 67mm.
Color: Blue.
Product specifications: 29*19*10.3 CM
Precautions:
1: Charging protection: constant current constant voltage balanced charging, protection function against battery overcharge and overcurrent.
2: Motor anti-stuck protection: When overloaded, the motor stops working.
3: High-temperature protection: When the working temperature is higher than the set, the drive control circuit stops working, and the temperature drops to the safe value and resumes work.
4: The power-off function of low-voltage electric adjustment, the battery is below about 6.3-6.4V, and the power is automatically cut off to prevent damage caused by over-discharge.

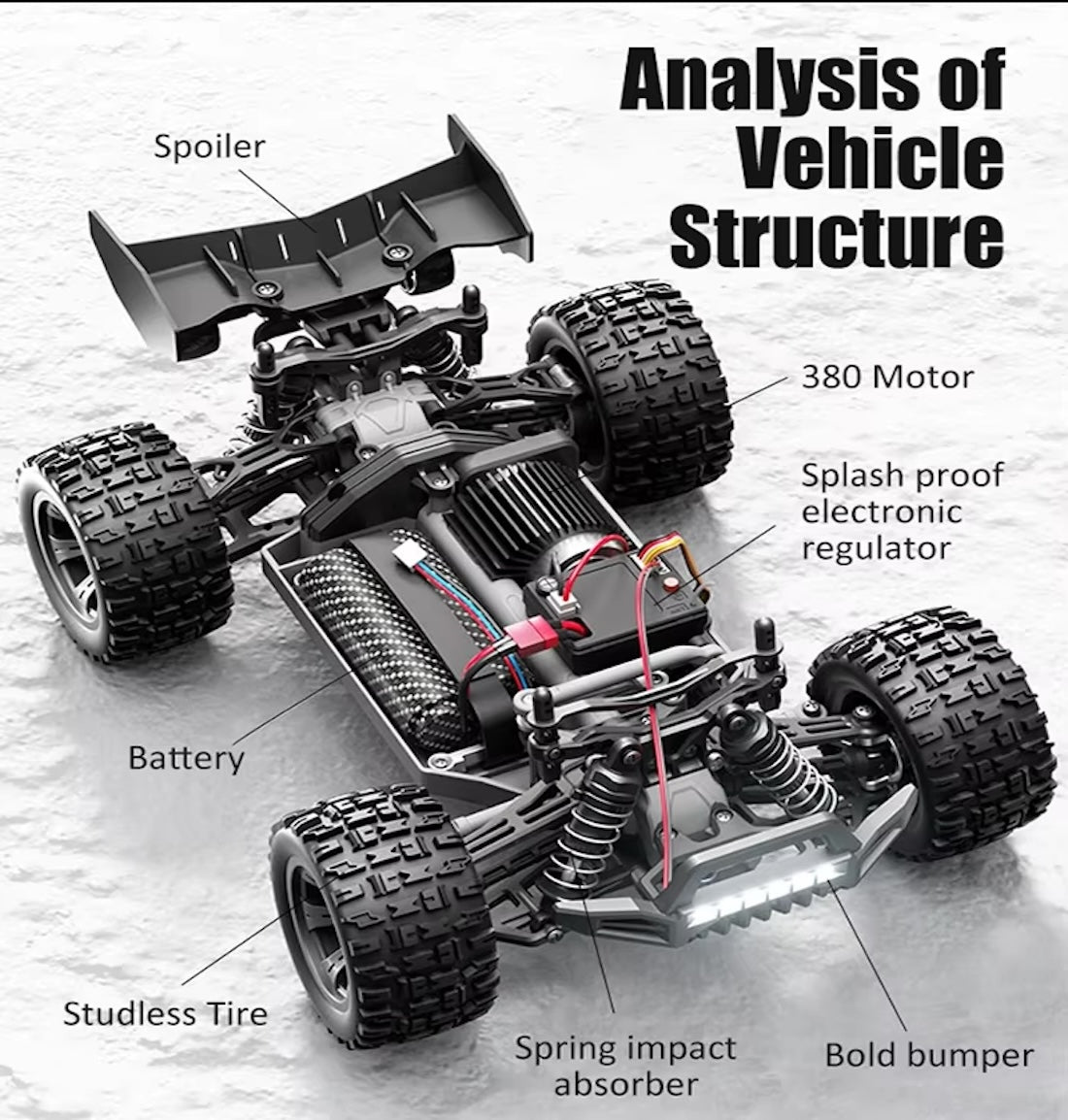

1. Adopting simulation structure design, with the control feeling of a real car, realizing full-proportion stepless speed change, high-speed driving, rapid acceleration, deceleration, braking, reversing, left turn, right turn.
3. Four-wheel drive: front and rear upright spring shock absorption, double fork arm independent suspension system.

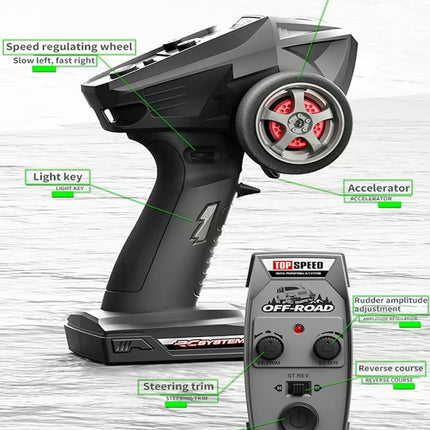

4. Remote control system: 2.4G full-scale synchronous remote control system. Full-proportion throttle/steer.
5. Transmission shaft structure: front wheel cross ball head universal joint transmission shaft, rear wheel split dog bone transmission shaft.
6. Battery parameters: 7.4V, 18650-1500mAh Li-ion battery (T-plug).
7. Ball bearings: 15 ball bearings are used in the whole car.

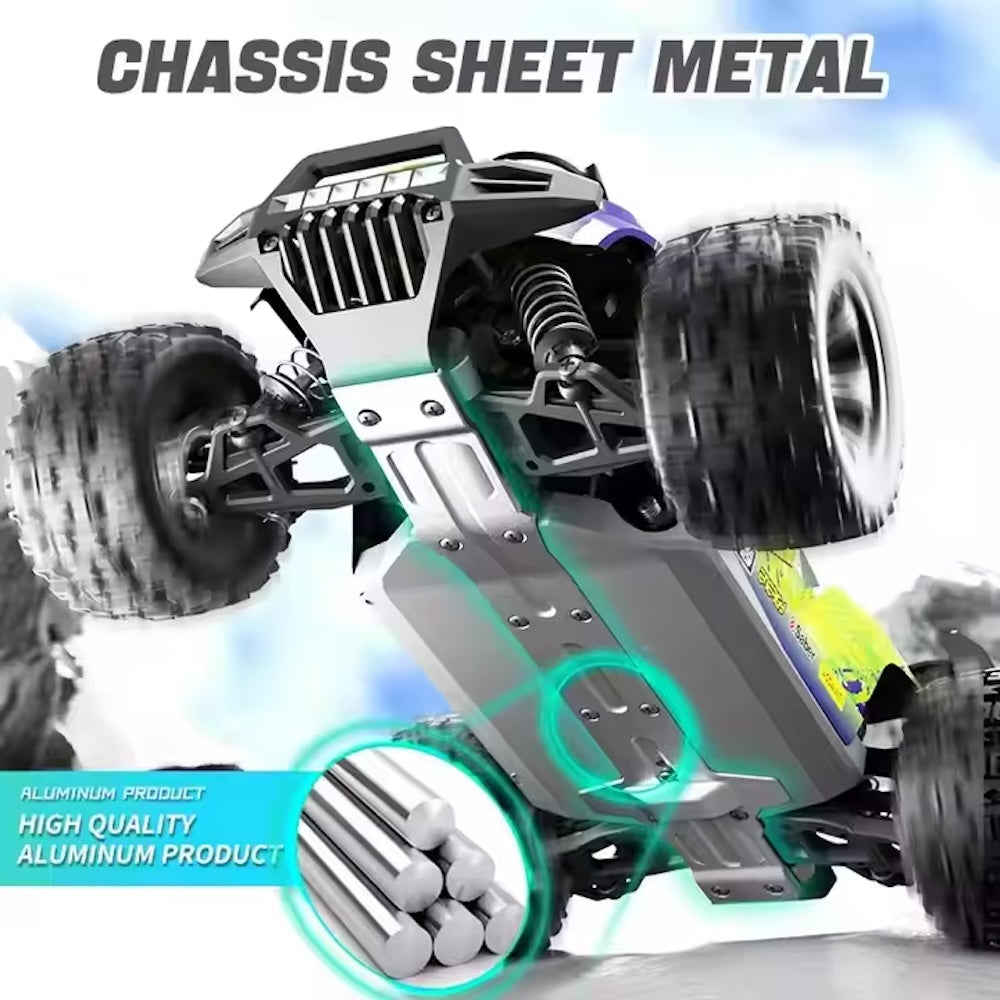

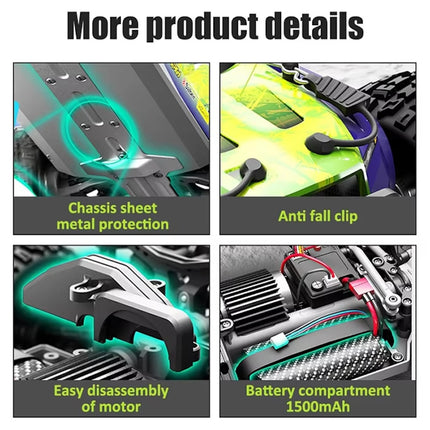

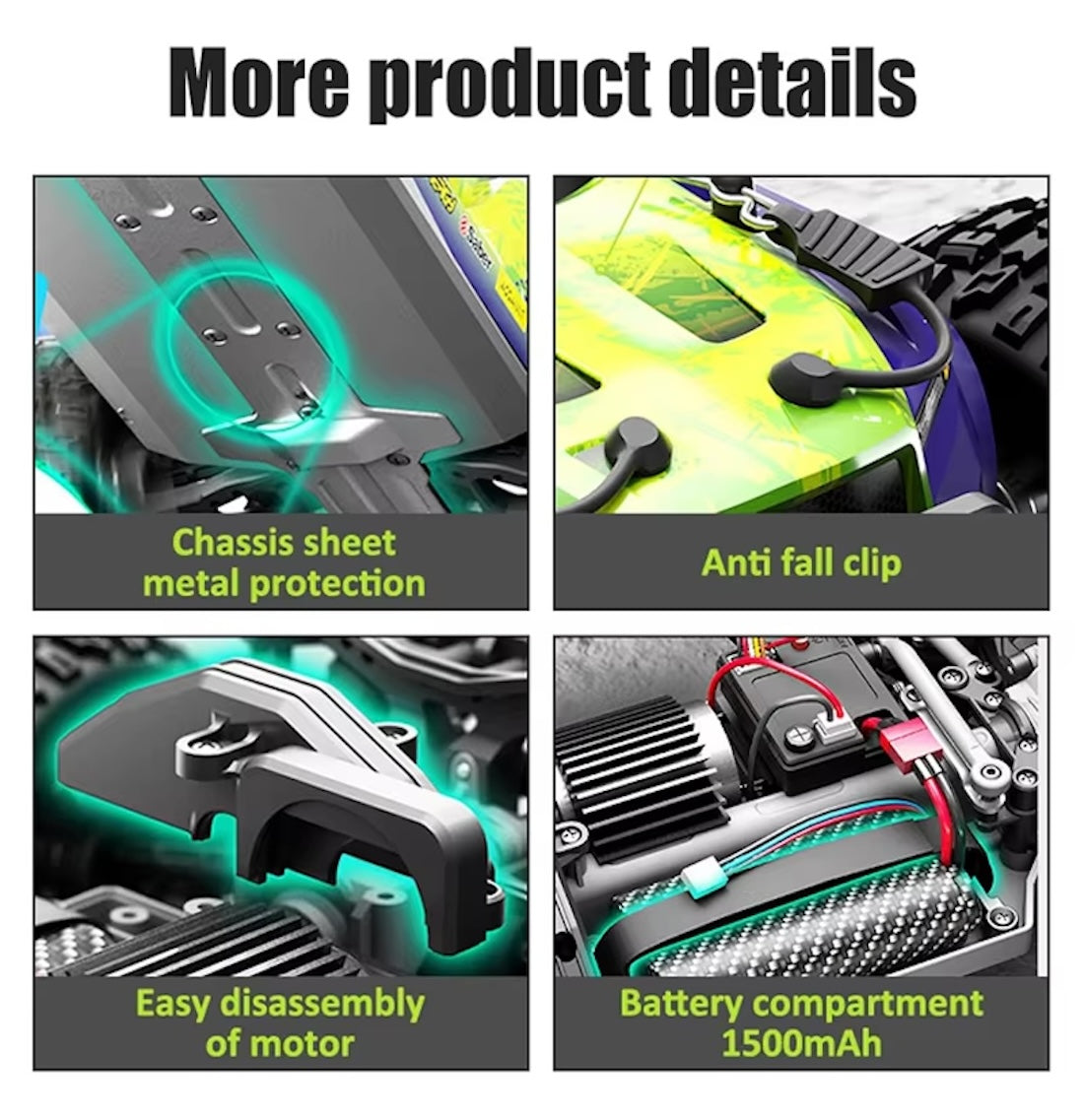

8. Metal parts: metal bottom reinforcement plate, metal differential, metal gear, metal steering joint, metal front and rear arm code, metal middle transmission shaft;
9. Car body: The car body adopts a high-toughness explosion-proof PVC car body; the car body comes with an anti-lost silicone snap.
10. Lighting: equipped with LED headlights; (three-speed mode: constant on, slow flash, flash).
